Hayward - DE Filter Parts - Perflex DE
SELECT YOUR PART BELOW

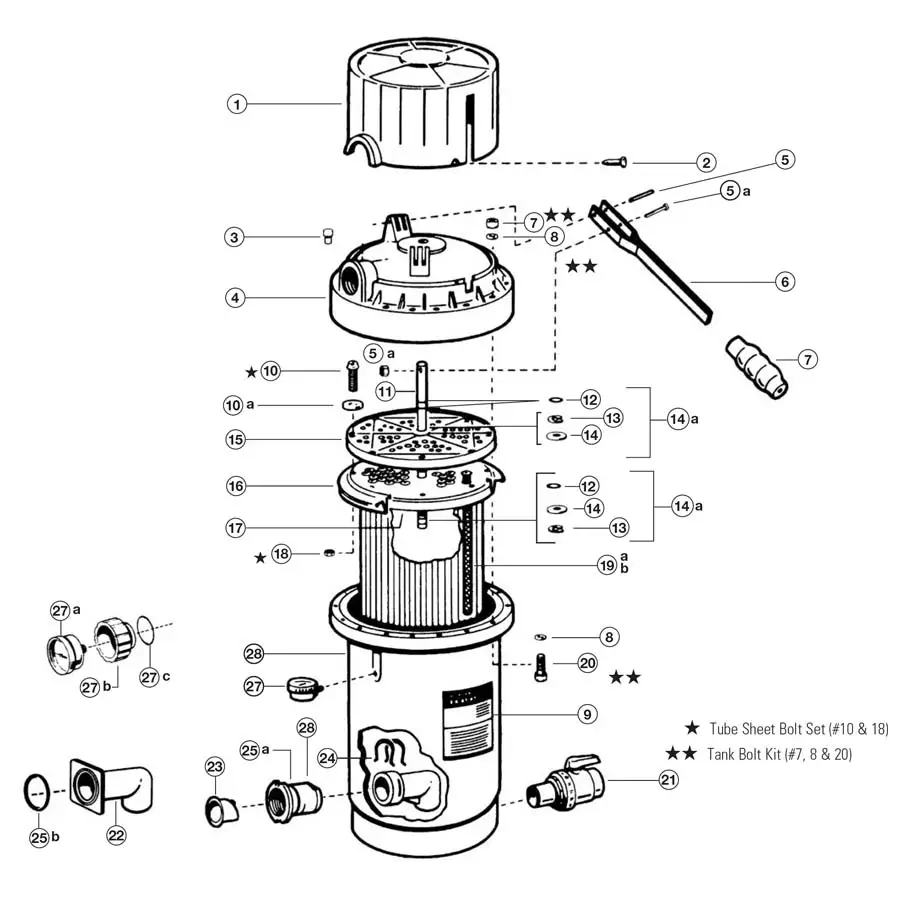

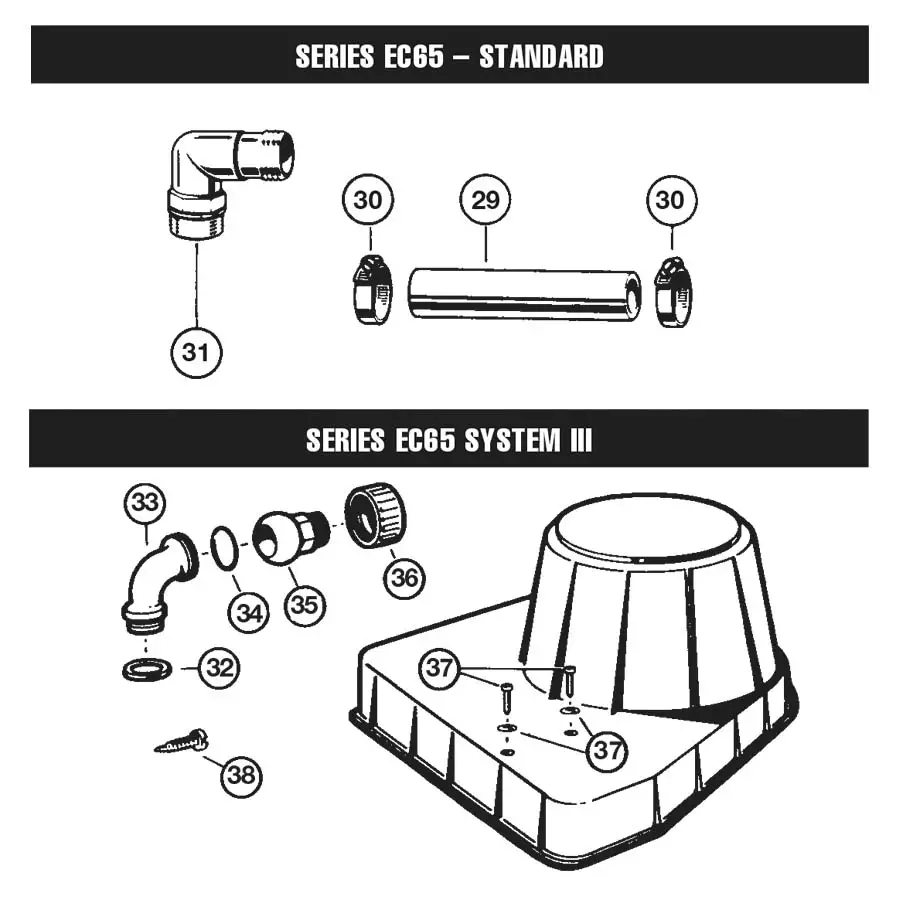

Below is a list of the consolidated replacement parts for the Hayward Perflex DE filter with the associated models EC65, EC65A, EC75, EC75A
Overall Inventory
| Central Warehouse | In Stock |
Please Note: Products might not be available at all locations.
Hayward - DE Filter Parts - Perflex DE
| Key | SKU / Part # | Name | Price |
|---|---|---|---|
| 1 | PTS-ECX11206 | BUMP MECH COVER EC65/75 | 122.99 |
| 2 | PTS-ECX1019 | COVER SCREW -EC30/40/50- | 2.99 |
| 3 | PTS-ECX1322A | C800-AIR RELIEF VALUE | 17.99 |
| 4 | PTS-ECX11194AT | EC65 FILTER HEAD W/VAC RELIEF | 654.99 |
| 5 | PTS-ECX100Z9 | PIVOT PIN | 8.99 |
| 5A | PTS-ECX4236A | BUMP HANDLE SCREW KIT | 8.99 |
| 6 | PTS-ECX1040 | COMPLETE NORYL BUMP HANDLE | 97.99 |
| 7 | PTS-ECX1642A | TANK BOLT SET | 11.99 |
| 8 | PTS-ECX1077 | WASHER | 1.99 |
| 9 | PTS-ECX1230 | DECAL OPERATION | 10.99 |
| 10 | PTS-SPX1500N2 | HOUSING BOLT | 4.99 |
| 10A | PTS-ECX1641125 | WASHER PLAIN STD #10 FLT 18/8 | 2.99 |
| 11 | PTS-ECX1110 | BUMP SHAFT -EC65/75- | 133.99 |
| 12 | PTS-ECX9611246PAK3 | SHAFT O-RING (SET OF 3) | 5.99 |
| 13 | PTS-ECX1014PAK2 | RETAINER CLIP EC30/40/50 PAK 2 | 12.99 |
| 14A | PTS-ECX1014A | RETAINER | 35.99 |
| 15 | PTS-ECX11034SET | TUBE SHEET-TOP/BOTTOM-EC65/75 | 150.99 |
| 16 | PTS-ECX1105 | DIAPHRAGM GASKET | 218.99 |
| 18 | PTS-SPX1500Y2 | HOUSING NUT KIT | 3.99 |
| 19A | PTS-ECX1031PAK5 | FLEX TUBE - PERFLEX (SET OF 5) | 60.99 |
| 19B | PTS-ECX1032PAK10 | FLEX TUBE -PERFLEX (SET OF 10) | 132.99 |
| 20 | PTS-ECX1642215 | BOLT | 8.99 |
| 22 | PTS-ECX4220A | ELBOW ASSY. W/CHECK VALVE-1989 | 120.99 |
| 23 | PTS-ECX4077B1 | CHECK VALVE | 45.99 |
| 24 | PTS-ECX4212A | RETAINER CLIP | 16.99 |
| 25A | PTS-SPX1425Z6 | O-RING | 7.99 |
| 25B | PTS-SPX1500W | STRAINER O-RING | 8.99 |
| 26 | PTS-ECX4201CA | TANK FITTING ASSY | 116.99 |
| 27 | PTS-ECX2712B1 | PRESSURE GAUGE W/DIAL, BOXED | 38.99 |
| 27A | PTS-ECX27091 | PRESSURE GAUGE (BOXED) | 63.99 |
| 27B | PTS-ECX12866 | GAUGE ADAPTER | 45.99 |
| 27C | PTS-ECX1287 | GAUGE ADAPTER O-RING | 12.99 |
| NS | PTS-ECX1251 | EC 65 TUBE NEST ASSBLY | 2110.99 |
| NS | PTS-ECX125175 | EC 75 TUBE NEST ASSY | 2476.99 |
| NS | PTS-ECX1263 | ELEVATED MTG BASE | 549.99 |
| 29 | PTS-ECX27071 | CLEAR HOSE | 51.99 |
| 30 | PTS-ECX18028 | HOSE CLAMP | 8.99 |
| 31 | PTS-SPX1105Z4 | 1 1/2 MPT X 1 1/2 BARBED | 11.99 |
| 32 | PTS-SPX1485C | GASKET | 10.99 |
| 33 | PTS-SPX1485B | UNION ELBOW | 60.99 |
| 36 | PTS-SPX1480C | UNION NUT | 20.99 |
| 37 | PTS-ECX1161Z2 | SCREW SET | 16.99 |
| 38 | PTS-SPX1600Z52 | MOUNTING FOOT CAP SCREW | 10.99 |
A consolidated replacement parts list for the Hayward Perflex DE filter with the associated models EC65, EC65A, EC75, EC75A. If you're having trouble finding the part you need feel free to reach out to one of our representatives in the contact section below.
