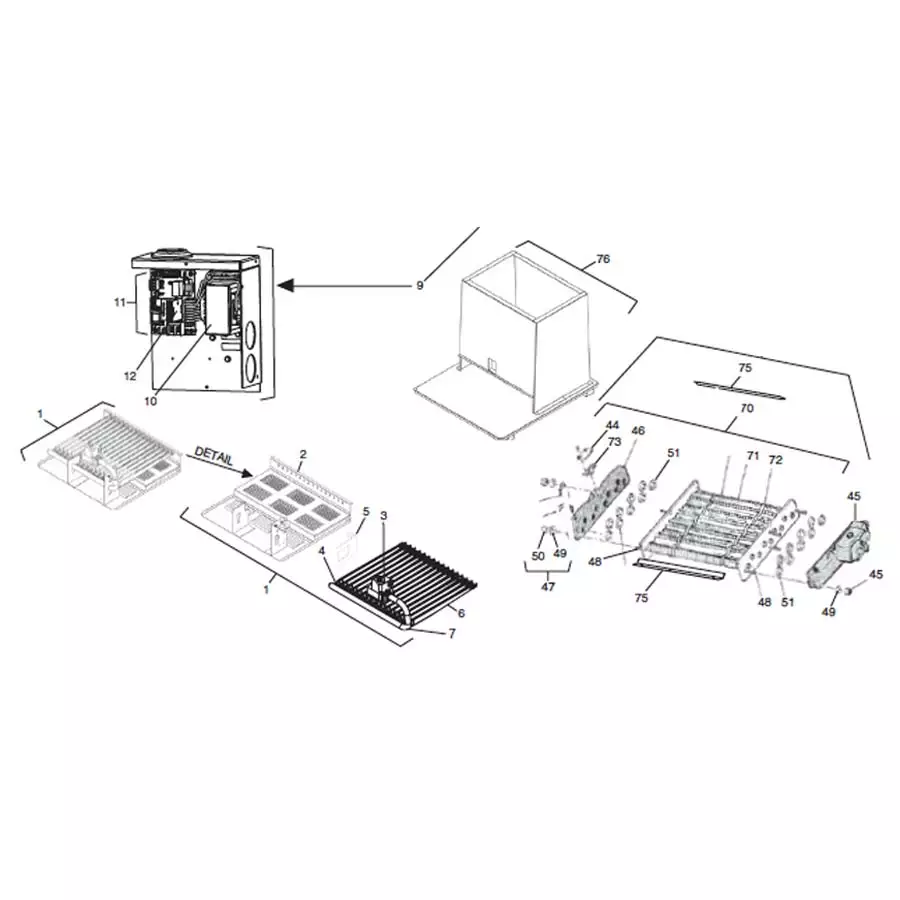

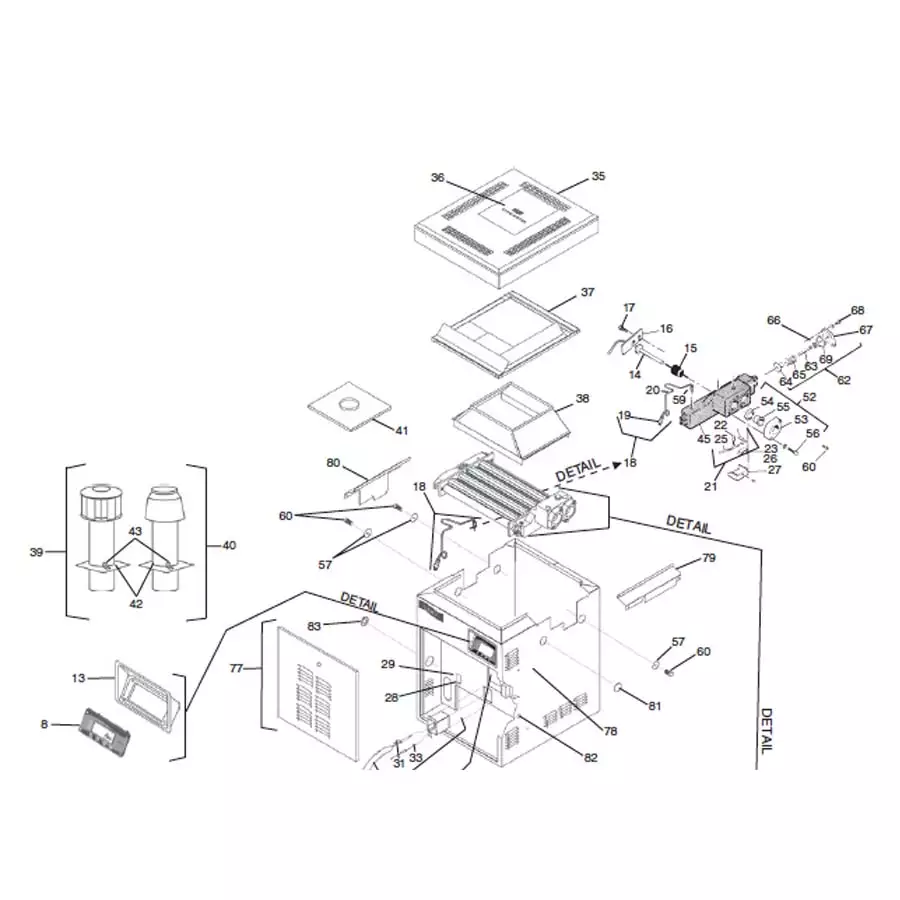

Jandy/Zodiac - Heater Parts - Lite2 LJ Pool/Spa Heater (Discontinued 2003 - 2009)
SELECT YOUR PART BELOW
Below you'll find a consolidated list of the replacement parts for the Jandy/Zodiac Lite2 LJ (Discontinued, 2003 - 2009).
Overall Inventory
| Central Warehouse | In Stock |
Please Note: Products might not be available at all locations.
Jandy/Zodiac - Heater Parts - Lite2 LJ Pool/Spa Heater (Discontinued 2003 - 2009)
| Key | SKU / Part # | Name | Price |
|---|---|---|---|
| 1 | PTS-R0383604 | Jandy Burner Tray Assembly Natural Gas, 325 | 2409.99 2409.99 |
| 1 | PTS-R0383705 | Jandy Burner Tray Assembly LP Gas, 400 | 2469.99 2469.99 |
| 2 | PTS-R0317001 | Jandy Burner Tray, Shelf Only, 125 | 327.99 327.99 |
| 2 | PTS-R0317002 | Jandy Burner Tray Shelf Only, 175 | 335.99 335.99 |
| 2 | PTS-R0317003 | Jandy Burner Tray, Shelf Only, 250 | 362.99 362.99 |
| 2 | PTS-R0317004 | Jandy Burner Tray Shelf Only, 325 | 354.99 354.99 |
| 2 | PTS-R0317005 | Jandy Burner Tray, Shelf Only, 400 | 366.99 366.99 |
| 3 | PTS-R0317100 | Jandy Gas Valve, Natural | 572.99 572.99 |
| 3 | PTS-R0319600 | Jandy Gas Valve, LP | 521.99 521.99 |
| 4 | PTS-L0032200 | Jandy Gas Orifice, Natural, 0'. - 3,000' | 4.99 4.99 |
| 4 | PTS-L0032900 | Jandy Gas Orifice, LP, 0' - 5,000' | 4.99 4.99 |
| 6 | PTS-R0469800 | Jandy Burner, Main, Model All, LRZE And LRZM | 36.99 36.99 |
| 7 | PTS-L0006400 | Jandy Gas Manifold, Laars Lite, 250 | 190.99 190.99 |
| 9 | PTS-R0366500 | Jandy High Voltage Assembly Box, LJ | 864.99 864.99 |
| NS | PTS-R0384900 | Jandy Fuse, 2 AMP Replacement Kit , 5/PK | 31.99 31.99 |
| 10 | PTS-R0366700 | Jandy 40VA Transformer With Harness Replacement Kit | 116.99 116.99 |
| 11 | PTS-R0366800 | Jandy Power Control Board Replacement Kit | 826.99 826.99 |
| 12 | PTS-R0366900 | Jandy 115/230 Vac Conversion Plug Replacement Kit | 83.99 83.99 |
| 13 | PTS-S0069800 | Jandy Temperature Control Bezel | 60.99 60.99 |
| 14 | PTS-R0367000 | Jandy Temperature Sensor | 177.99 177.99 |
| 18/20 | PTS-R0057800 | Jandy Siphon Loop Assembly | 132.99 132.99 |
| 18/19 | PTS-R0013200 | Jandy Water pressure switch only kit | 143.99 143.99 |
| 19 | PTS-R0015500 | Jandy Pressure Switch, 1-10 PSI, Model All, LRZE And LRZM | 164.99 164.99 |
| 21 | PTS-R0023200 | Jandy High-limit Switch Assembly Replacement Kit | 152.99 152.99 |
| 22 | PTS-R0022700 | Jandy High-limit Switch 135Degree F | 74.99 74.99 |
| 23 | PTS-R0023000 | Jandy High-Limit Switch,150Degree F Replacement Kit Model All, LRZE and LRZM Model All, LRZE And LRZM | 71.99 71.99 |
| NS | PTS-10419300 | Jandy High Limit Switch Harness LG, CE, Replacement Kit | 133.99 133.99 |
| 28 | PTS-R0012200 | Jandy Fusible Link Assembly, Replacement Kit Model All, LRZE/LRZM | 17.99 17.99 |
| 30/31 | PTS-R0449800 | Jandy LJ Igniter Assembly Replacement Kit | 310.99 310.99 |
| 31 | PTS-R0367100 | Jandy Igniter Replacement Kit | 206.99 206.99 |
| 33 | PTS-R0334300 | Jandy Flame Sensor, LD Replacement Kit | 196.99 196.99 |
| NS | PTS-R0325900 | Jandy Wire harness set, complete Replacement Kit, All | 210.99 210.99 |
| 40 | PTS-10561404 | Jandy Draft Hood 325 | 290.99 290.99 |
| 41 | PTS-R0473101 | Jandy Transition, Flue Lite2 125 | 16.99 16.99 |
| 41 | PTS-R0473103 | Jandy Transition, Flue Lite2 250 | 28.99 28.99 |
| 42 | PTS-R0449705 | Jandy Adaptor plate, 400 | 48.99 48.99 |
| 45 | PTS-R0056400 | Jandy Inlet/Outlet Header, 2" | 1032.99 1032.99 |
| 45 | PTS-R0016800 | Jandy Header, In/Out,Bronze 2" | 1314.99 1314.99 |
| 47 | PTS-R0057000 | Jandy Header Bolt Kit | 58.99 58.99 |
| 51 | PTS-R0050800 | Jandy Header Gasket Set of 18 | 42.99 42.99 |
| 52 | PTS-R0055000 | Jandy Flange and Gasket Assembly | 374.99 374.99 |
| 53 | PTS-10573500 | Jandy Flange, 2" | 115.99 115.99 |
| 54 | PTS-S0078000 | Jandy Flange Gasket, 2" | 37.99 37.99 |
| 54 | PTS-S0078100 | Jandy Gasket, Adapter, 2"X1 1/2" | 10.99 10.99 |
| 55 | PTS-S0078200 | Jandy Flange Sleeve, 2" | 11.99 11.99 |
| 56 | PTS-R0461500 | Jandy Flange And Gasket Kit, Bronze, Model All, LRZE And LRZM | 374.99 374.99 |
| 57 | PTS-R0316300 | Jandy Grommet Kit | 11.99 11.99 |
| 60 | PTS-P0026800 | Jandy Pipe Plug 1/4" NPT | 8.99 8.99 |
| 61 | PTS-P0027000 | Jandy Pipe Plug 0.75" NPT | 21.99 21.99 |
| 62 | PTS-R0013100 | Jandy Bypass Kit | 18.99 18.99 |
| 62 | PTS-R0452802 | Jandy Flow Valve Assembly 175 | 110.99 110.99 |
| 62 | PTS-R0452804 | Jandy Flow Valve Assembly 325 | 110.99 110.99 |
| 62 | PTS-R0452805 | Jandy Flow Valve Assembly 400 | 110.99 110.99 |
| 63 | PTS-S0079800 | Jandy By-pass Valve Rod | 14.99 14.99 |
| 64 | PTS-R0011500 | Jandy Bypass Valve Disc | 7.99 7.99 |
| 65 | PTS-S0079900 | Jandy By Pass Spring, 2" Header, 125 Purple | 20.99 20.99 |
| 65 | PTS-S0061400 | Jandy By-pass Spring, White | 19.99 19.99 |
| 65 | PTS-S0061300 | Jandy By-pass Spring, Red | 18.99 18.99 |
| 65 | PTS-S0070100 | Jandy By Pass Spring, Black, 400 | 10.99 |
| 67 | PTS-R0054900 | Jandy Bypass Assembly, 2" | 60.99 60.99 |
| 67 | PTS-R0054901 | Jandy By-Pass Assembly, 2" Replacement Kit, Flow Cap Bronze | 120.99 120.99 |
| 69 | PTS-R0011400 | Jandy Gasket, Flow Control Replacement Kit | 6.99 6.99 |
| 70 | PTS-R0018101 | Jandy Heat Exchanger Tube Assembly, 125 | 1144.99 1144.99 |
| 70 | PTS-R0018103 | Jandy Heat Exchanger Tube Assembly, 250 | 1675.99 1675.99 |
| 70 | PTS-R0018102 | Jandy Heat Exchanger Tube Assembly, 175 | 1369.99 1369.99 |
| 70 | PTS-R0018104 | Jandy Heat Exchanger Tube Assembly, 325 | 1926.99 1926.99 |
| 70 | PTS-R0018105 | Jandy Heat Exchanger Tube Assembly, 400 | 2067.99 2067.99 |
| 70 | PTS-10697401 | Jandy Baffle Heat Exchanger 125 8 Required | 3.99 3.99 |
| 71 | PTS-10697402 | Jandy Baffle Heat Exchanger 175 8 Required | 3.99 3.99 |
| 71 | PTS-10697403 | Jandy Baffle Heat Exchanger 250 8 Required | 3.99 3.99 |
| 71 | PTS-10697404 | Jandy Heat Exchange Baffle, 325 (8 Required) | 3.99 3.99 |
| 71 | PTS-10697405 | Jandy Baffle Heat Exchanger 400 8 Required | 3.99 3.99 |
| 71 | PTS-S0083900 | Jandy Baffle Retainer Clip | 28.99 28.99 |
| 72 | PTS-R0460300 | Jandy Grommet, Seal 2" Replacement Kit | 5.99 5.99 |
| 83 | PTS-R0040400 | Jandy Press Relief Valve Kit, 75 PSI Bronze Model All, LRZE And LRZM | 69.99 69.99 |
| NS | PTS-R0444800 | Jandy Fuse Set Complete, All | 32.99 32.99 |
A consolidated list of the replacement parts for the Jandy/Zodiac Lite2 LJ (Discontinued, 2003 - 2009). If you're having trouble finding the parts you need, feel free to reach out to one of our representatives in the contact section below.
Features
Dimensions
Product Videos
Lite2 LJ Pool/Spa Heater Owners ManualJandy/Zodiac - Heater Parts - Lite2 LJ Pool/Spa Heater (Discontinued 2003 - 2009)
