Maytronics - Cleaner Parts - Explorer E-20
SELECT YOUR PART BELOW

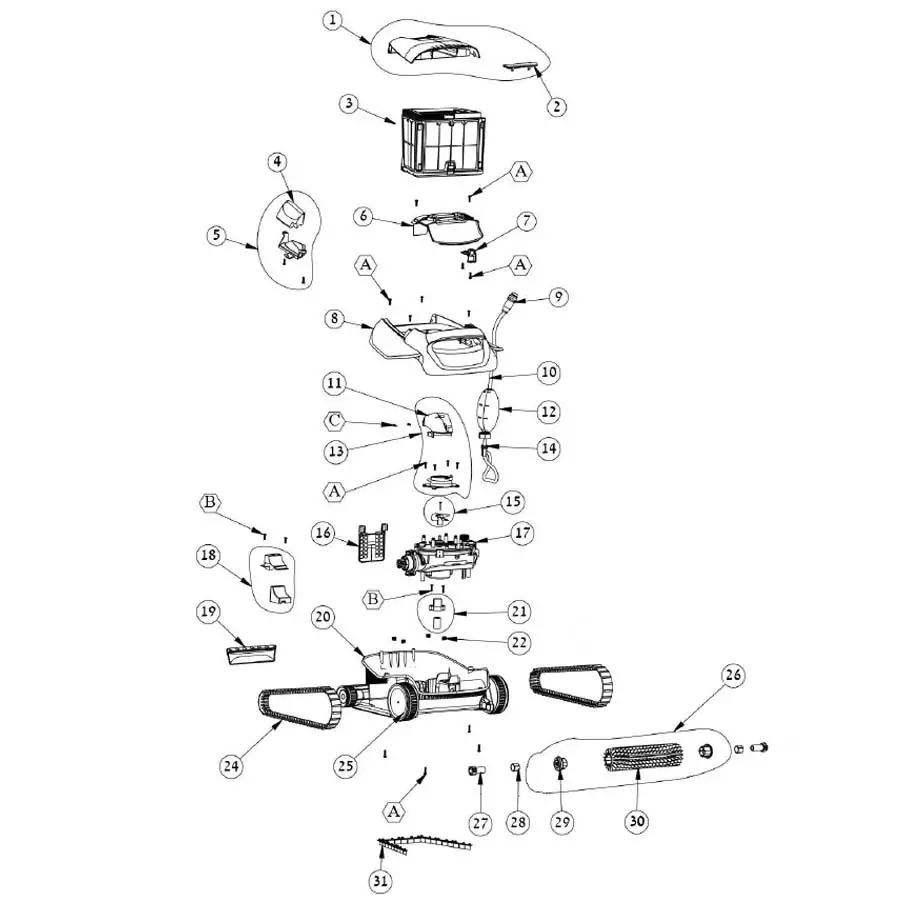

Below you'll find a consolidated list of the replacement parts for the Maytronics Explorer E-20.
Overall Inventory
| Central Warehouse | In Stock |
Please Note: Products might not be available at all locations.
Maytronics - Cleaner Parts - Explorer E-20
| Key | SKU / Part # | Name | Price |
|---|---|---|---|
| 001(01) | PTS-99956035USF1 | PS ADVANCED WT 115V US | 586.99 586.99 |
| 001(02) | PTS-58984402LF | USA SWITCHING PS CORD + O RING | 29.99 29.99 |

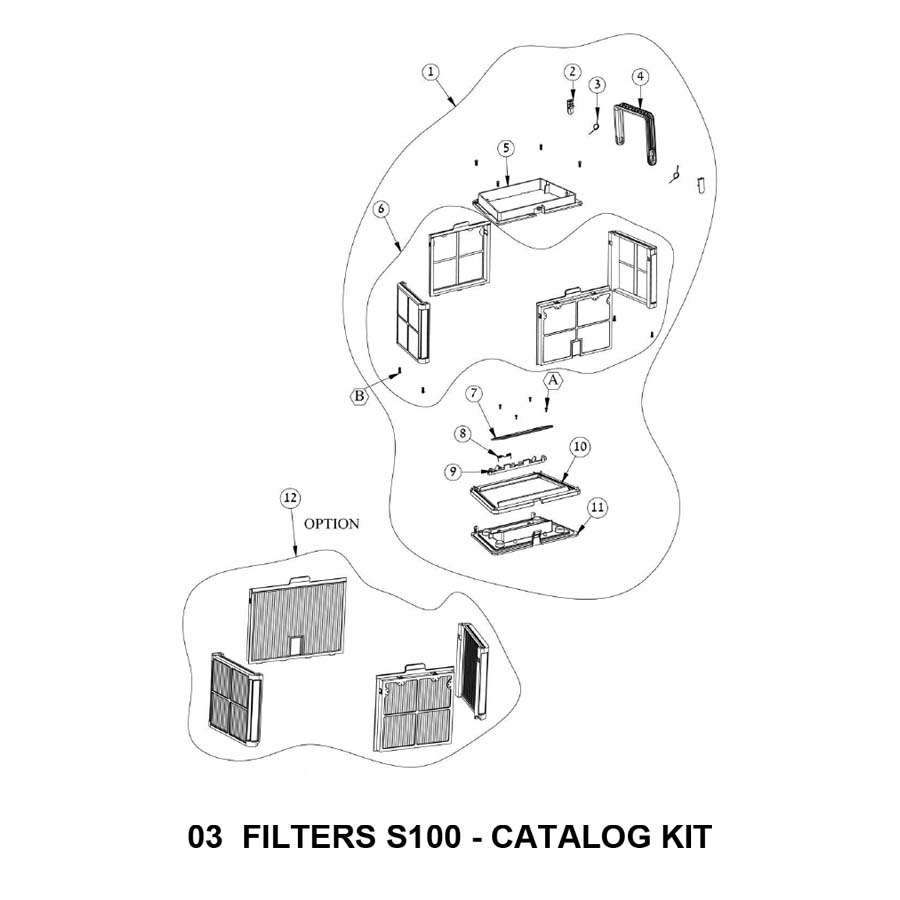

| 03(01) | PTS-9991459ASSY | FINE FILTER BASKET ASSY | 150.99 150.99 |
| 03(01B) | PTS-9991482ASSY | SUPER ULTRA FILTER BASKET (SMALL) | 246.99 246.99 |
| 03(01C) | PTS-9991460R1 | ULTRA-FINE FILTER BASKET ASSY | 150.99 150.99 |
| 03(02) | PTS-9983027 | FILTER HANDLE KNOB | 3.99 3.99 |
| 03(03) | PTS-3917029 | FILTER HANDLE SPRING S300i | 9.99 9.99 |
| 03(04) | PTS-9983004 | FILTER HANDLE 1 | 7.99 7.99 |
| 03(05) | PTS-9983037 | FILTER FRAME TOP | 11.99 11.99 |
| 03(07) | PTS-9983025 | FILTER FLAP | 3.99 3.99 |
| 03(09) | PTS-9983026 | FILTER HOLDER | 3.99 3.99 |
| 03(12) | PTS-9991466R4 | ULTRA-FINE FILTERS (SET OF 4) | 103.99 103.99 |
| 03(A) | PTS-3303008A | SCREW KA30X8 WN1412 A2 | 1.99 1.99 |
| 03(B) | PTS-3379410A | SCREW WN1412 A2 KA40X10 - MTIL | 1.99 1.99 |
| 04 | PTS-6250960 | UPPER FLOAT | 3.99 3.99 |
| 09 | PTS-5000009 | AMPHENOL PLUG | 38.99 38.99 |
| 10 | PTS-9995884DIY | CABLE (NO SWIVEL, 2 WIRE) - 50 FEET | 195.99 195.99 |
| 11 | PTS-9991740 | NOZZLE TUBE SMALL L+R ASSY | 1.99 1.99 |

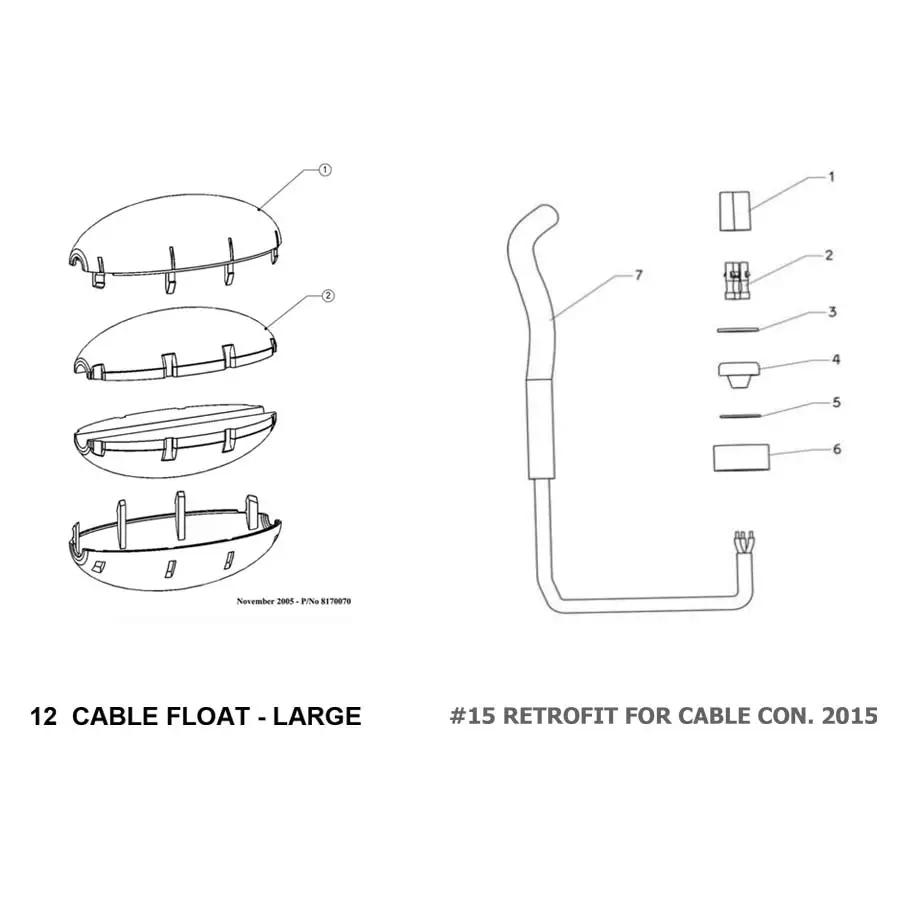

| 12 | PTS-99960081 | CABLE FLOAT - LARGE | 13.99 13.99 |
| 13 | PTS-9991742 | MANIFOLD | 9.99 9.99 |
| 14 | PTS-9991271 | RETROFIT FOR CABLE CONN. 2015 | 24.99 24.99 |
| 14(02) | PTS-1811404 | CABLE CONNECTOR | 1.99 1.99 |
| 14(03) | PTS-9985027 | PLASTIC WASHER 7MM X 2MM | 1.99 1.99 |
| 14(04) | PTS-3861002 | O-RING FOR CABLE CONN. | 1.99 1.99 |
| 14(05) | PTS-9980025 | WASHER-INSIDE DIA. 13MM | 1.99 1.99 |
| 14(06) | PTS-9980797 | NUT FOR MBU TERMINAL 2015 | 1.99 1.99 |
| 15 | PTS-9995266 | IMPELLER & SCREW - BLACK | 18.99 18.99 |

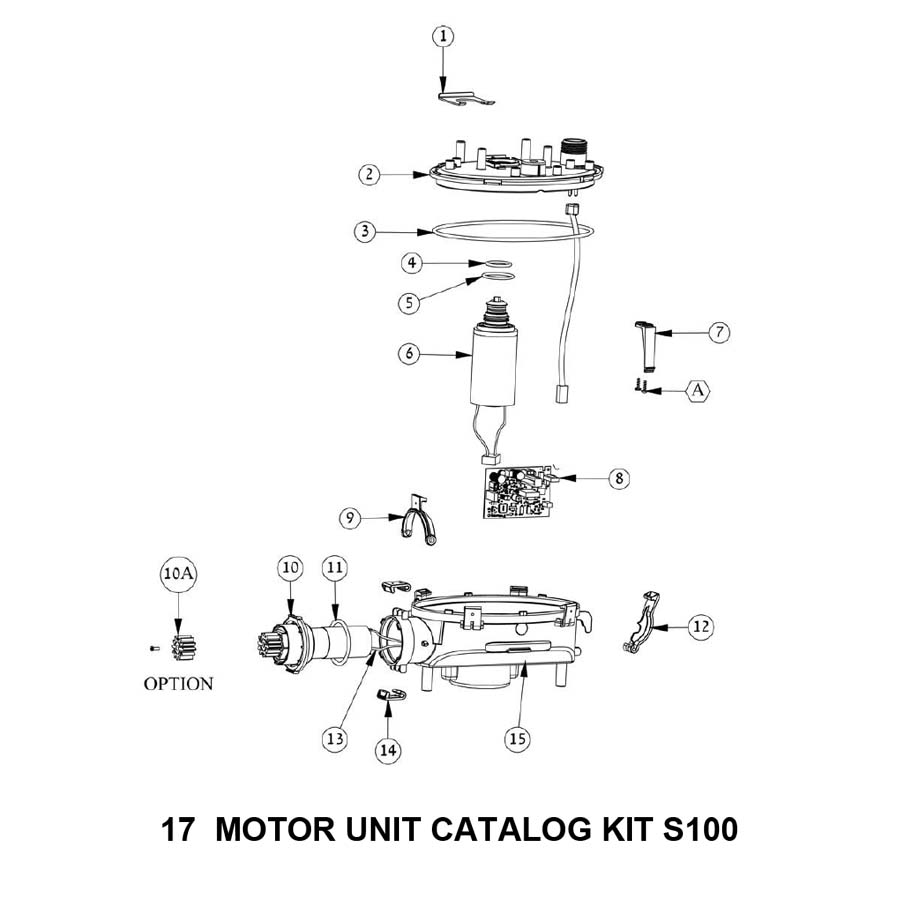

| 17(01) | PTS-5588902 | IMPELLER MOTOR HOLDER | 11.99 |
| 17(06) | PTS-9991211ASSY | IMPELLER MOTOR | 132.99 132.99 |
| 17(10) | PTS-9991210ASSY | DRIVE MOTOR | 199.99 199.99 |
| 17(10A) | PTS-9983142 | GEAR FOR DRIVE MOTOR UNIT S50/ACTIVE 10 | 3.99 3.99 |
| 17(12) | PTS-9983166 | MOTOR CLIP | 1.99 1.99 |
| 17(A) | PTS-3374012A | SCREW KA 40X12 | 1.99 1.99 |
| 17(MU2) | PTS-9995386EX | MOTOR UNIT | 702.99 702.99 |
| 18 | PTS-9991747 | LOWER FLOAT & HOUSING | 3.99 3.99 |
| 19 | PTS-9983024 | RAPID DRAIN FLAP | 8.99 8.99 |

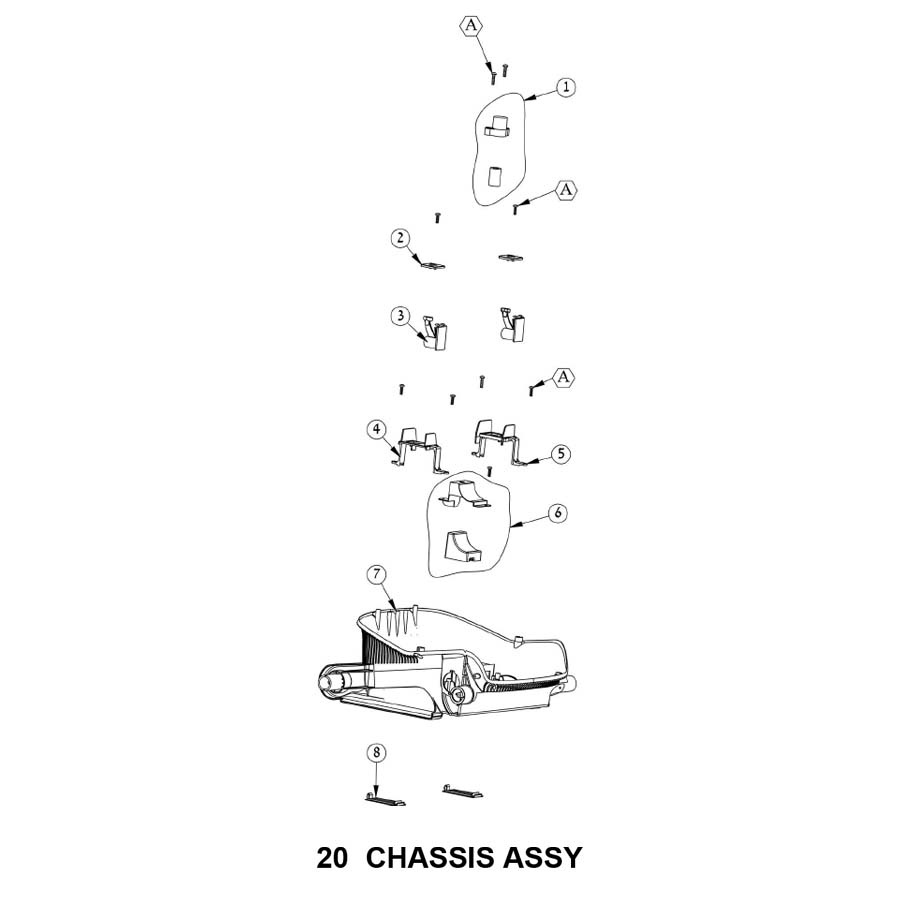

| 20 | PTS-9991752 | CHASSIS ASSY | 104.99 104.99 |
| 20(01) | PTS-9991746ASSY | INNER WEIGHT & COVER | 9.99 9.99 |
| 20(02) | PTS-9983092 | BYPASS COVER - TOP | 1.99 1.99 |
| 20(03) | PTS-9991743ASSY | BYPASS DOOR ASSY | 12.99 12.99 |
| 20(04) | PTS-9983090 | BYPASS COVER - LEFT | 3.99 3.99 |
| PTS-9983091 | BYPASS COVER - RIGHT | 3.99 3.99 | |
| PTS-9983001 | CHASSIS S100 | 77.99 77.99 | |
| PTS-9983039 | BYPASS BOTTOM COVER | 1.99 1.99 | |
| PTS-3379440A | SCREW KA50X12 A2 WN1412 - MTIL | 1.99 1.99 | |
| PTS-3917022 | FILTER SPRINGS | 3.99 3.99 | |
| PTS-9983152 | TRACKS - GREY | 43.99 43.99 | |
| PTS-9983013 | ACTIVE BRUSH BRACKET - LEFT | 2.99 | |
| PTS-9983114 | WHEEL BUSHING | 1.99 1.99 | |
| PTS-9983012 | ACTIVE BRUSH BRACKET - RIGHT | 5.99 5.99 | |
| PTS-3726283 | BYPASS WEIGHT | 28.99 28.99 | |
| PTS-3379616A | SCREW KA50X16 - | 1.99 1.99 | |
| PTS-9995544ASSY | ACTIVE BRUSH ASSY - GREY | 38.99 38.99 | |
| PTS-9983018 | ACTIVE BRUSH GEAR Z12 | 1.99 1.99 | |
| PTS-9983042 | ACTIVE BRUSH BUSHING S100 | 1.99 1.99 | |
| PTS-9983017 | ACTIVE BRUSH ADAPTOR S100 | 3.99 3.99 | |
| PTS-9983122 | ACTIVE BRUSH FINS GREY | 14.99 14.99 | |
| PTS-9991732 | RUBBER STRIPS (SET OF 10) | 9.99 9.99 |
A consolidated list of the replacement parts for the Maytronics Explorer E-20. If you're having trouble finding the parts you need, feel free to reach out to one of our representatives in the contact section below.
Features
Dimensions
Product Videos
Manuals
 Maytronics E-20 Manual |
