Raypak - Heater Parts - R106A - R156A
SELECT YOUR PART BELOW
Below you'll find the consolidated list of replacement parts for the Rapak Heater models R106A and R156A.
Overall Inventory
| Central Warehouse | In Stock |
Please Note: Products might not be available at all locations.

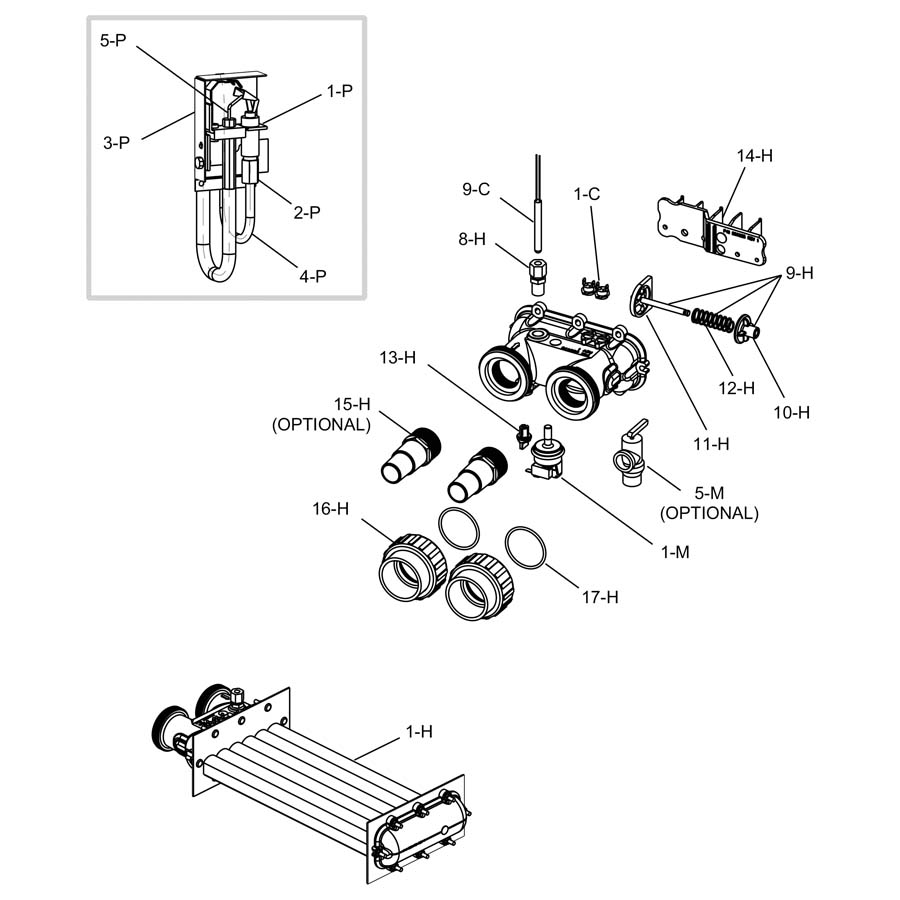

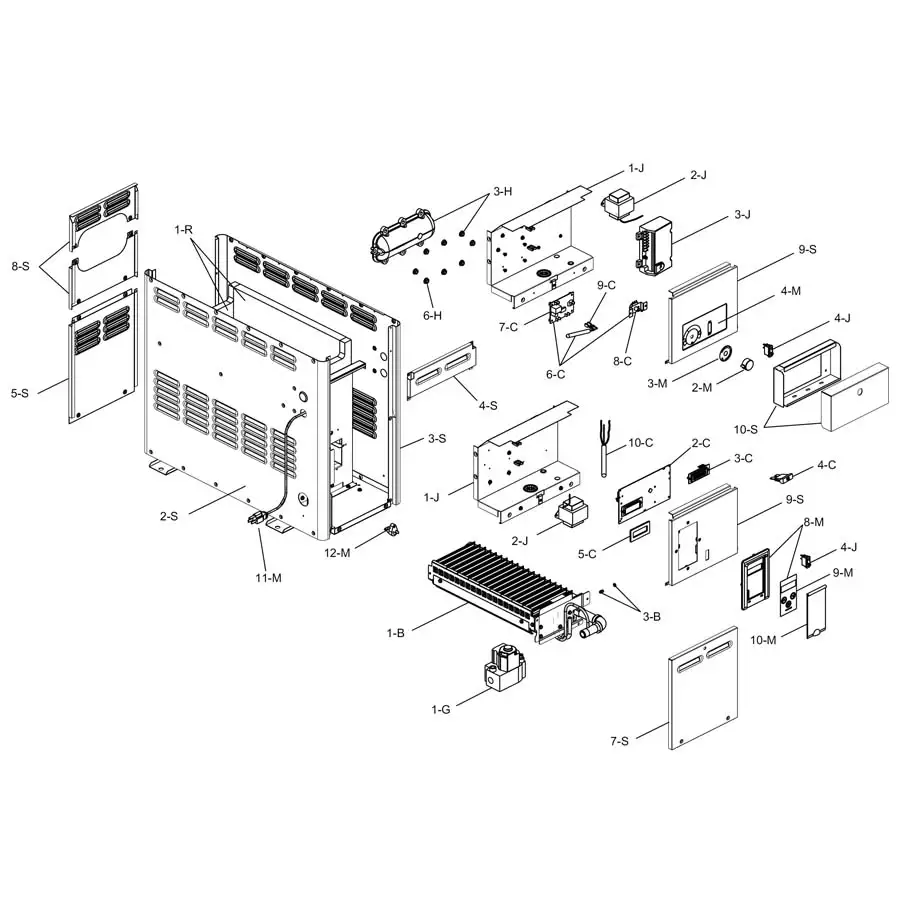

Raypak - Heater Parts - R106A - R156A
| Key | SKU / Part # | Name | Price |
|---|---|---|---|
| 1-B | PTS-014841F | TRAY/MAN 106A NAT1.30MM-KIT | 454.99 |
| 1-B | PTS-014842F | TRAY/MAN 156A NAT1.30MM-KIT | 512.99 |
| 1-B | PTS-014845F | TRAY/MAN 106A PRO.84MM-KIT | 454.99 |
| 1-B | PTS-014846F | TRAY/MAN 156A PRO.84MM-KIT | 512.99 |
| 1-B | PTS-014849F | BURNER TRAY 106A NAT1.30MM-KIT | 629.99 |
| 1-B | PTS-014850F | BURNER TRAY 156A NAT1.30MM-KIT | 687.99 |
| 1-B | PTS-014853F | BURNER TRAY 106A PRO.84MM-KIT | 629.99 |
| 1-B | PTS-014854F | BURNER TRAY 156A PRO.84MM-KIT | 687.99 |
| 3-B | PTS-014857F | ORIFICE 106A 1.30MM-KIT | 25.99 |
| 3-B | PTS-014858F | ORIFICE 156A 1.30MM-KIT | 25.99 |
| 3-B | PTS-014861F | ORIFICE 106A .84MM-KIT | 25.99 |
| 3-B | PTS-014862F | ORIFICE 156A .84MM-KIT | 25.99 |
| 1-C | PTS-006725F | HIGH LIMIT 135FAUTO RESET SURFACE MTG-KIT | 56.99 |
| 2-C | PTS-013464F | PC BOARD CONTROLLER106A-405B 206A-408 3WIRE-KIT | 544.99 |
| 3-C | PTS-013640F | LCD DISPLAY POOLSTAT-KIT | 58.99 |
| 4-C | PTS-013733F | FUSE 5 AMP PC BOARD-KIT | 12.99 |
| 5-C | PTS-014866F | GASKET LCD WINDOW-KIT | 1.99 |
| 6-C | PTS-011585F | THERMOSTAT POOL-KIT | 414.99 |
| 8-C | PTS-011586F | POTENTIOMETER TEMPCONTROL-KIT | 67.99 |
| 9-C | PTS-011587F | TEMP SENSORELECTRONIC TWO WIRE-KIT | 103.99 |
| 10-C | PTS-009577F | TEMPERATURE SENSORIID THREE WIRE-KIT | 95.99 |
| 1-G | PTS-014867F | GAS VALVE NAT106A-156A-KIT | 176.99 |
| 1-G | PTS-014868F | GAS VALVE PRO106A-156A-KIT | 176.99 |
| 1-H | PTS-014869F | HT EX 106A POLYMER-KIT | 1391.99 |
| 1-H | PTS-014870F | HT EX 156A POLYMER-KIT | 1654.99 |
| 2-H | PTS-011594F | HDR IN/OUT POLYMERPOOL 130-KIT | 651.99 |
| 2-H | PTS-011595F | HDR IN/OUT POLYMER130 106A-156A-KIT | 463.99 |
| 3-H | PTS-011596F | HDR RETURN POLYMER130 106A-156A-KIT | 138.99 |
| 4-H | PTS-014874F | TUBE BUNDLE 106APOLYMER-KIT | 614.99 |
| 4-H | PTS-014875F | TUBE BUNDLE 156APOLYMER-KIT | 818.99 |
| 6-H | PTS-008259F | FLANGE NUT 1/4-20-KIT | 27.99 |
| 7-H | PTS-011600F | O RING GASKET (2)130 106A-156A-KIT | 35.99 |
| 8-H | PTS-006714F | SENSOR ADAPTER POOL-KIT | 45.99 |
| 9-H | PTS-011601F | BYPASS 130-KIT | 49.99 |
| 9-H | PTS-015548F | BYPASS-KIT 156A | 38.99 |
| 10-H | PTS-006716F | BYPASS VALVE POOL-KIT | 48.99 |
| 11-H | PTS-006717F | BYPASS DAM/SHAFT-KIT | 49.99 |
| 12-H | PTS-011602F | BYPASS SPRING 130-KIT | 4.99 |
| 13-H | PTS-006721F | DRAIN PLUG POOL-KIT | 24.99 |
| 14-H | PTS-014882F | INLET/OUTLET HEADERDAM 106A-156A-KIT | 138.99 |
| 15-H | PTS-011635 | HOSE ADAPTOR1-1/2 MPT X 1-1/2-KIT | 30.99 |
| 17-H | PTS-006723F | CONNECTOR & NUT CPVC2" (2)-KIT | 60.99 |
| 1-J | PTS-006724F | O RING INLET/OUTLETPOOL-KIT | 31.99 |
| 1-J | PTS-014883F | CONTROL BOX ANALOG NAT 106A-KIT | 474.99 |
| 2-J | PTS-011605F | TRANSFORMER 120/240V130 106A-KIT | 108.99 |
| 2-J | PTS-006736F | TRANSFORMER 120/240V-KIT | 108.99 |
| 3-J | PTS-004817B | ELECTRONIC IGNITIONCONTROL W/O LOCKOUT-KIT | 307.99 |
| 4-J | PTS-004818B | ELECTRONIC IGNITIONCONTROL W/LOCKOUT-KIT | 307.99 |
| 1-M | PTS-009493F | ROCKER SWITCH SPST-KIT | 25.99 |
| 1-M | PTS-006737F | PRESSURE SWITCH 1.75PSI-KIT | 84.99 |
| 2-M | PTS-009133F | PRESSURE SWITCH 11PSI-KIT | 94.99 |
| 3-M | PTS-009499F | CONTROL KNOB MV-KIT | 4.99 |
| 5-M | PTS-006886F | THERMOSTAT KNOB STOP-KIT | 6.99 |
| 6-M | PTS-008091F | PRV 125 PSI-KIT | 91.99 |
| 7-M | PTS-052871F | DELIMING 5/8 TUBE-KIT | 524.99 |
| 7-M | PTS-014884F | WIRE/HARNESS 106A-KIT | 86.99 |
| 8-M | PTS-014885F | WIRE/HARNESS 156A-KIT | 132.99 |
| 9-M | PTS-014886F | CONTROL BEZEL 156A-KIT | 149.99 |
| 10-M | PTS-014887F | SWITCH/DECALMEMBRANE-KIT | 81.99 |
| 11-M | PTS-014888F | COVER CONTROL BEZEL-KIT | 41.99 |
| 12-M | PTS-011609F | LINE CORD 120V POOL-KIT | 49.99 |
| PTS-005899F | THERMAL CUT-OFF FUSE-KIT | 46.99 | |
| PTS-750256 | PAINT-AERO COOL DARKGREY | 67.99 | |
| PTS-750258 | PAINT-AERO WARM DARKGREY | 67.99 | |
| PTS-002003F | PILOT E10 NAT/PRO053-408-KIT | 120.99 | |
| PTS-003903F | PILOT ORIFICE NATIID-KIT | 16.99 | |
| PTS-004308F | PILOT ORIFICE PROIID-KIT | 10.99 | |
| PTS-014889F | PILOT BRKT 106A-156A-KIT | 6.99 | |
| PTS-004078F | PILOT TUBE 34"-KIT | 67.99 | |
| PTS-014890F | REF BLOCK 106A-KIT | 361.99 | |
| PTS-014891F | REF BLOCK 156A-KIT | 530.99 | |
| PTS-014892F | JACKET TOP 106A-KIT | 86.99 | |
| PTS-014893F | JACKET TOP 156A-KIT | 92.99 | |
| PTS-014894F | JACKET LEFT 106A-KIT | 145.99 | |
| PTS-014895F | JACKET LEFT 156A-KIT | 149.99 | |
| PTS-014896F | JACKET RIGHT 106A-KIT | 145.99 | |
| PTS-014897F | JACKET RIGHT 156A-KIT | 149.99 | |
| PTS-014898F | JACKET UPPER FRONT106A-156A-KIT | 41.99 | |
| PTS-014899F | JACKET LOWER REAR106A-156A-KIT | 134.99 | |
| PTS-014900F | FLUE COLLECTOR 106A-KIT | 142.99 | |
| PTS-014901F | FLUE COLLECTOR 156A-KIT | 183.99 | |
| PTS-014902F | JACKET DOOR RAYPAK/RUUD 106A-156A-KIT | 159.99 | |
| PTS-014903F | JACKET DOOR RHEEM106A-156A-KIT | 159.99 | |
| PTS-014904F | ACCESS PANEL106A-156A-KIT | 91.99 | |
| PTS-014905F | KIT-CONTROL PANEL 106A | 175.99 | |
| PTS-014906F | CONTROL PANEL 156A-KIT | 94.99 | |
| PTS-014907F | STACKLESS TOP 106A-KIT | 254.99 | |
| PTS-014908F | STACKLESS TOP 156A-KIT | 257.99 | |
| PTS-014910F | STACK ADAPTER 106A-KIT | 94.99 | |
| PTS-014911F | STACK ADAPTER 156A-KIT | 96.99 |
A consolidated list of replacement parts for the Rapak Heater models R106A and R156A. If you're having difficulty finding the part you need, please reach out to one of our representatives in the contact section below.
